Bomba peristáltica de alta protección MF106

Price: Request Pricing

Request a Quote

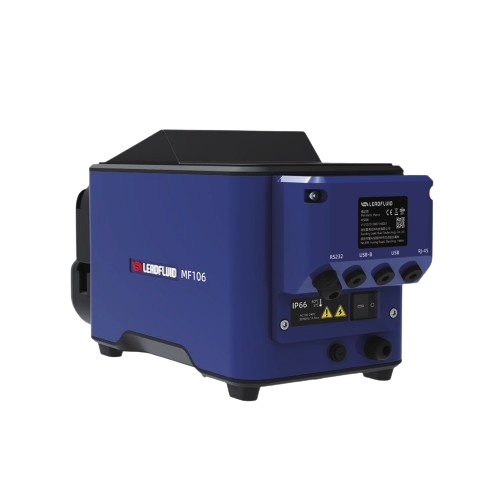

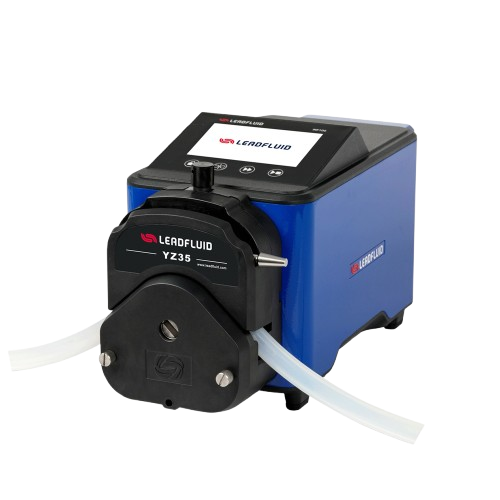

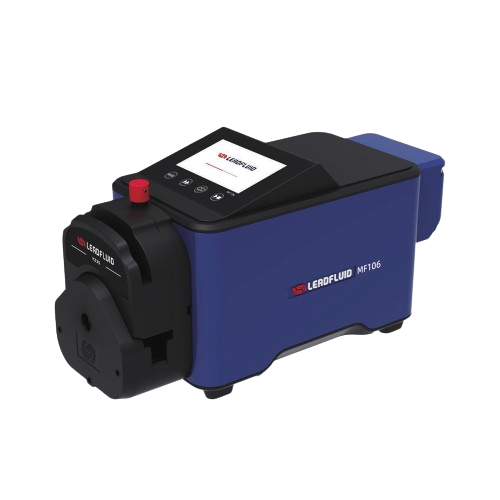

Lead Fluid MF106 high-protection peristaltic pump, designed and developed for pharmaceutical and industrial applications. With IP66/IP67 high protection level, it possesses dust-proof and short-term liquid immersion capabilities, enabling stable operation in harsh environments such as dust, humidity, weak acid and alkali, and salt spray for extended periods.

Flow: 0.006-7920mL/min
Max: 4 Channels

Functions and Features

Precision-crafted cast aluminum shell
Streamlined appearance, lightweight cast aluminum powder-coated shell, excellent heat dissipation, strong corrosion resistance.
Integrated structure, great integrity
The pump head and the driver are integrated, easy installation.
Seven-inch large screen, clear at a glance
A seven-inch color LCD touch screen with wide viewing angles, making operation simple.
Servo motor drive
High-precision operation, high torque, low noise.
Five working modes
Offers flow mode, volume mode, time dispensing mode, programming mode, and external control mode, flexibly meeting various scenario requirements.
Intelligent interconnection, collaborative operation
Supports RS485 communication, compatible with Modbus protocol.
Three-level user permission management, security protection, no need to worry about parameter tampering.
Selects top-brand raw materials, meticulously selected, quality guaranteed.

Specifications

Ref. Code	P82224-1
Flow range	0.006-7800mL/min
Speed range	0.1-360 rpm
Speed resolution	0.1rpm, accuracy 0.2%
Speed accuracy	<0.5%
Work mode	Key control start and stop, direction, full speed, state memory (power-off memory). Foot switch control,external control start/stop and direction, with physical isolation, 5V/12V 24V level input optional, 0-5V/ 0-10V/4-20mA adjustable speed optional, flow mode, volume dispensing mode, time dispensing mode
Adjust methood	Touch screen operation
Dispaly methood	5-inch color touch screen
Rotating direction	CW/CCW
External control signal input	(1) Start/Stop: passive contact, external control input level (5~24V); (2) Forward/Reverse: passive contact, external control input level (5~24V); (3) Speed
Regulation	analog 0~5V, 0~10V, 4~20mA can be set
External control signal output	(1) Start/Stop: Level Signal (following input voltage); (2) Forward/Reverse: Level Signal (following input voltage)
Communication interface	RS485 communication interface, Modbus protocol is available
Power supply	AC 100-240V 50-60 Hz
Power consumption	<180W
Working environment	Working temperature0-40℃,working humidity 80%
Shell material	Aluminum
IP grade	IP66/IP67
Dimension(LxWxH)	363x180x230mm
Drive weight	11kg

Applicable Pump Head and Tube, Flow Parameters

Drive Type	Pump Head	Channel	Tube	Single Channel Flow Rate (mL/min)
MF106	YZ15/YZ15T	1,2,4	13#14#19#16#25#17#18#	0.006～1537
	YT25	1,2	114#116#15#24#35#36#	0.024～1800
	KZ25	1	15#24#35#36#	0.31～3960
	DMD25	1	114#119#116#15#24#35#36#	0.058～4320
	YZ35	1	73#82#	1.3～7920

Los parámetros de flujo anteriores se obtienen al usar un tubo de silicona para transferir agua pura a temperatura y presión normales; en el uso real, se ven afectados por factores específicos como la presión, el medio, etc. Lo anterior es solo de referencia.
