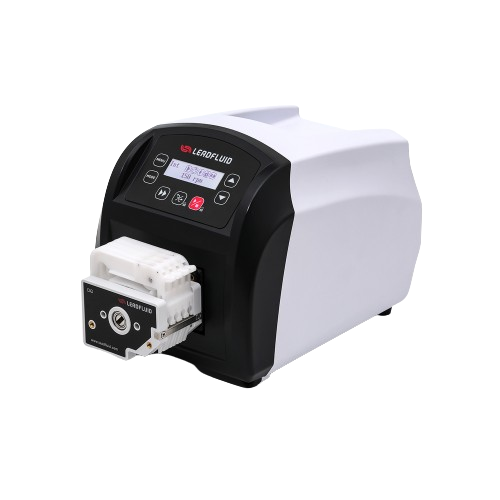

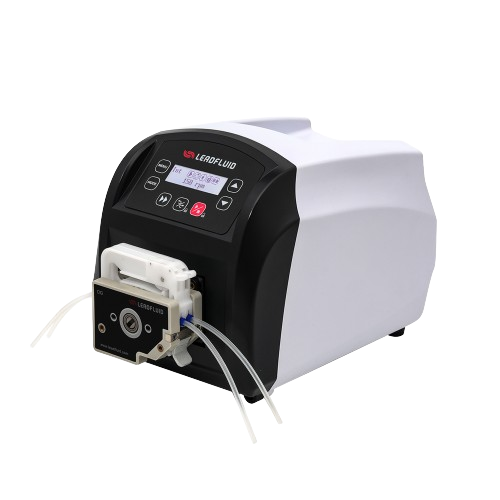

BT601S Intelligent Variable-Speed Peristaltic Pump
Flow rate: 0.005–3000 mL/min. Up to 2 channels.
- 128 × 32 LCD with Chinese/English interface, simple parameter setting and intuitive status display.
- Optional remote start/stop, speed regulation and timed operation through the Lead Fluid app, with shutdown alarms and tubing-replacement reminders.
- Delayed start and stop.
- Start/stop, reversible direction, full-speed operation, speed adjustment and power-off state memory.
- Analog external speed adjustment; electrically isolated external start/stop and direction control.
- External signal input supports 5–24 V.
- External speed-control signal type (voltage or current) selectable from the panel.
- RS485 communication, MODBUS protocol and configurable communication parameters.
- Multiple parameters for custom ODM applications.
- Conformal-coated circuit board protects against dust and moisture.
- High interference immunity and wide input-voltage range.
- Streamlined ABS plastic housing.
Shared specifications and options

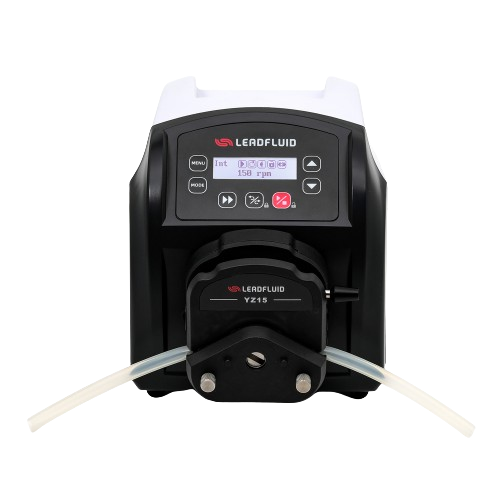

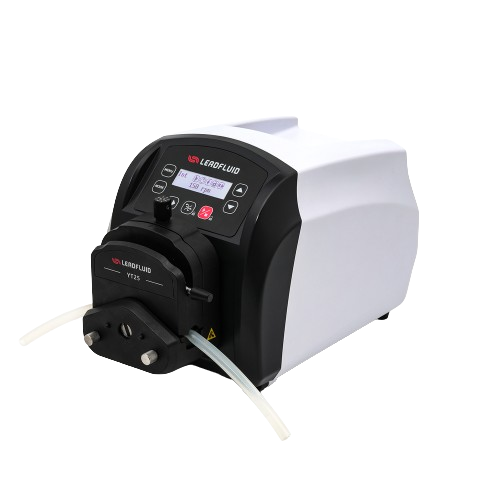

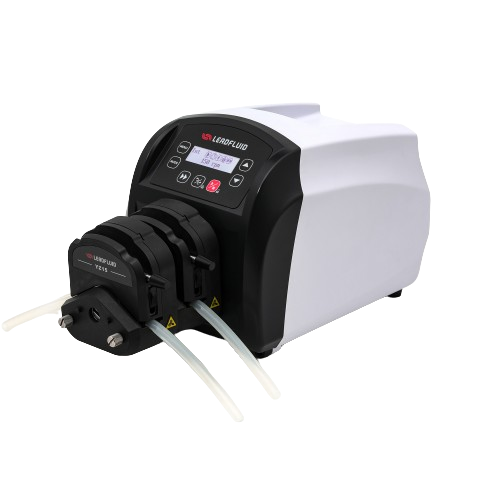

Compatible Pump Heads, Tubing and Flow Rate Parameters
| Pump Head | YZ15 | YT25 |
|---|---|---|
| Ch | 1, 2 | 1 |
| Tubing Size | 13# 14# 19# 16# 25# 17# 18# | 114# 116# 15# 24# 35# 36# |
| Flow Rate per Channel (mL/min) | 0.005~2562 | 0.024~3000 |
Specifications
| Parameter | Value |
|---|---|
| Flow Rate Range | 0.005~3000 mL/min |
| Speed Range | 0.1~600rpm |
| Speed Resolution | 0.1rpm (Speed ≤100rpm), 1rpm (Speed >100rpm) |
| accuracy of Speed | <0.5% |
| Operating Time | 0.1~999 S/Min/H/D |
| Dispensing Interval | 0.1~999 S/Min/H/D |
| Dispensing Time | 1~999, "0" Ciclos infinitos |
| External Control | level of input of External Control 5V, 12V (standard), 24V (optional), External Control analógico 0-5V (standard), 0-10V, 4-20mA (optional) |
| Communication Interface | RS485 communication interface; Modbus protocol supported |
| Power Supply | AC 100-240V 50/60Hz |
| Power Consumption | <50W |
| Operating Environment | temperature 0 ~ 40℃, relative humidity <80% |
| IP Rating | IP31 |
| Dimensions (LxWxH) | 284mmx180mmx197mm |
| Drive Weight | 3.9 kg |
